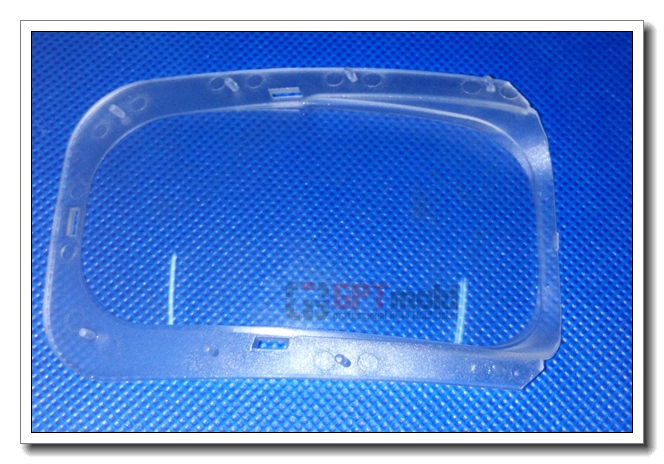

moulded Optics, spherical & aspheric lensOptical/Transparent/clear Mold&Parts Specifications
We have rich experience in Optical product mold, such as Led lens, light guide, monitor cover,ect.
- High Classinjection mod manufacturing qualification are as below:
- Import high optical raw material: PMMA.
- Core &Cavity Steel:Germany Formadur 2083 ESR,2190 ESR ,Finkl 420 VAR, Formadur PH X supra,
- Mold Base:A&B plate always use P20(28~32HRC)
- Heat Treatment :50~52HRC quenching.
- Surface Finish:SPI A1 or Diamond Turned
- Cavities:2
- Injection Runner&Gate:Cold Runner Side gate or hot Sprue switch cold sub runner side gate
- Quality:Strict Inspected by each process;
- Mold Design:Experienced mold designed always know how to make inserts for the optical lens mold, this can ensure the tooling process are easily meet the final requirement.,such as turning, EDM, Polishing, venting. Each step should be carefully considered to reach the final perfect product.
- Cooling system:to meet the optical effect of the molded part, the mold always will need be heated to 90 degree or above
